LED street light

SMPS

Product image

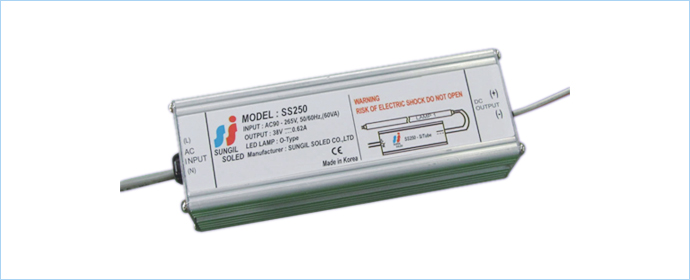

ss250 image

특징 및 장점
  • Ocp, Ovp, Point adjustable through oufput internal potentiometer
  • Universal AC input
  • Built-in active PFC function
  • High efficiency up 87%
Specification
"SMPS Specification"
Model No. SPS25
(for LED tube)
SPS50
(for LED tube)
SPS75
SPS75-35 SPS75-50 SPS75-75
Output current 630mA 630mAX2ch 730mA 1,040mA 1,570mA
Output voltage range 36~46V 36~46V 36~48V 36~48V 36~48V
Rated power 23W 50W 35W 50W 75W
Current range/ Accuracy 0~630mA
±5.0%
0~630mA
±5.0%
0~730mA
±5.0%
0~1,040mA
±5.0%
0~1,570mA
±5.0%
Ac input voltage range Universal AC input(90~277V)
Ac inrush current(max) Cold start, 40A at 230VAC
Frequency range 47~63HZ
PFC function Built-in active PFC function : PF > 0.9 for 75% of load or higher
protection Overload 100%~110% constant current limiting, Auto recovery
Short circuit Hiccup mode, recovers automatically
after condition is removed
Over voltage 56V~62V
Temperature 95˚C±10˚C(RTH1) Protection type : Shut down o/p voltage,
re-power on to recover
Working condition Timperature : -34˚C ~ +70˚C /
Humidity 20%~95% RH non-condensing
Dimension(LXWXH) mm 151X45X40 226X45X40 170X45X40 170X45X40 170X45X40
Safety standard UL8750 Approved

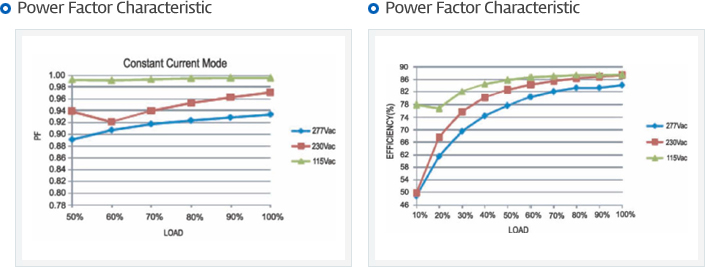

그래프 이미지

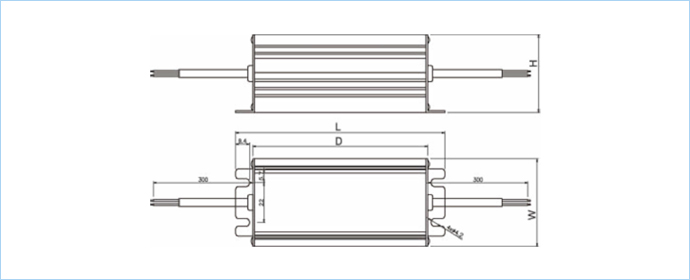

LED Power Supply CASE Size

Supply CASE Size 이미지

"Supply CASE Size Specification."
Model SPS25 SPS50 SPS75-35 SPS75-50 SPS75-75
L 151 226 174 174 174
D 127 202 150 150 150
H 40 40 40 40 40
W 45 45 45 45 45
제품이미지

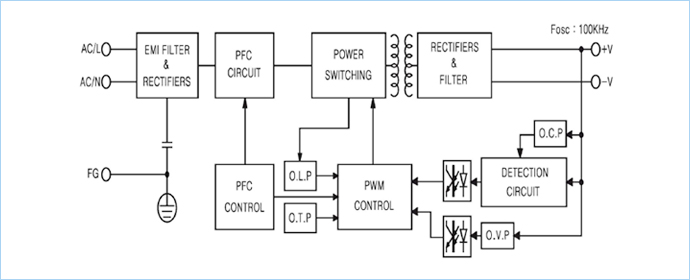

diagram 이미지
