Solar Product

Solar inverter(SSL500)

규격

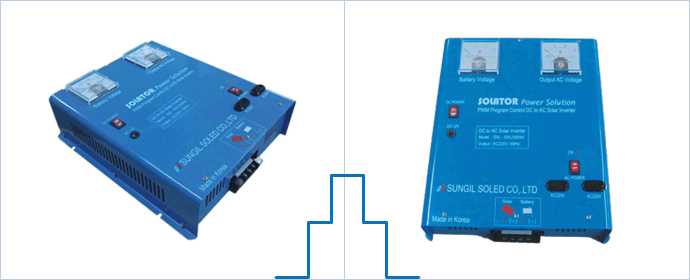

제품이미지

제품 도면 및 상세 설명
도면상세이미지
  • Battery Volt Indication Gauge
  • Output AC Volt Indication Gauge
  • DC12V Output Power Switch
  • DC12V Output Electric Power Jack
  • Charge & Waring Lamp
  • AC Power Switch
  • AC 100V~220V Power Connection Outlet
  • input (Solar & Battery) Connection Terminal

    ※ Warnung lamp Indication Function (RED LED)

규격
Warnung lamp Indication Function (RED LED) 경고 램프표
Product Features SSL500
Quput AC100"-'220V
Frequency Range 50 I 60Hz (modified)
Battery Voltage 12V I 200Ah
Solar Cell 20V I 6Ah
Pretection Over Charge 14.8V
Discharge 11.0V
Over Output Hiccup mode, recovers automatically
after condition is removed
Output Short
Over Temperature 68"C±10%
Battery Low Voltage 10.5V(Warning lamp)
Operating Temperature -10"C"-'60"C
Size(mm) 300X270X80
Warnung lamp Indication Function (RED LED) 경고 램프
밧데리전압 사용가능
충전자량
12.7~12.9 100%
12.5~12.6 80%
12.3~12.4 60%
11.9~12.0 50%
11.5~11.8 30%
