Solar Product

SM150.solar warnig light

What is the solar warnig light

This product receives solar energy through the solar cell and this energy convert to electric energy convert to electric energy which charged by the battery and when it is sun down or heavy fog, the bright of around is dark under the normal luminous intensity, the light on automatically by the sensor of LED lamp so it does not need to any other supply of electric power and automatic luminous green environment product.

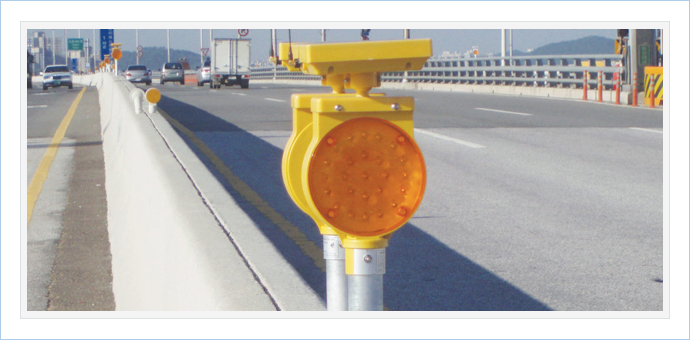

This product furnish mainly the information of the road line shape in the great occurrence area of fog and also install in the dangerous curved sector, tunnel, bridge or in front of road construciton so call the driver attention to the warning & notice.

Product image

solar warnig ligth image

Size
solar warnig light
Division Size
Body ∮170 x 250(mm)
Cell fixing frame 175 x 145(mm)
LED 10,000mcd x 25ea
Post assembly ∮48, ∮55, ∮60

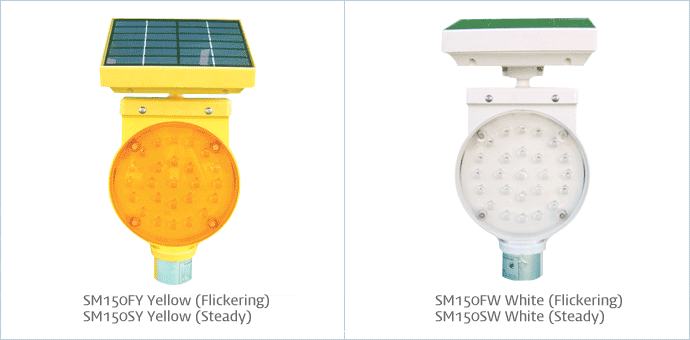

Steady type (Color - Yellow, White) LED keeps the light on continuously
Flickering type (Color - Red, Yellow) LED keeps the light flickering continuously
Specitication
Specitication
Model No. SM150SY / SM150SW SM150FY / SM150FW
Size dimension ∮170 x 250 x 330mm / 175 x 145 ∮170 x 250 x 330mm / 175 x 145
Bright type Steady Flickering
LED ∮10: 25ea x 10,000mcd ∮10: 25ea x 10,000mcd
Battery 3.6V x 2,000mA (4EA) 3.6V x 2,000mA (4EA)
Solar cell(163 x 136) 6V x 400mA (2.4W) 6V x 400mA (2.4W)
Discharge amount 60mA/hr 45mA/hr
Working time 30hr(2.5days) 42hr(3.5days)
Material P.P / P.C P.P / P.C
Construction case
