태양광제품

SS-LGP

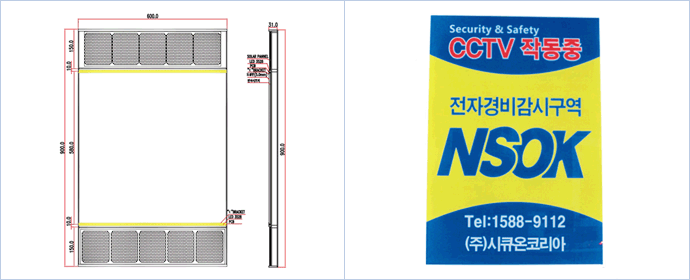

제품이미지

SS-LGP이미지

규격
제품규격
SOLAR LGP SPEC
Product Features SS-SOLAR-LGP
Size 900X600X30mm
Solar Size
Solar Volt/Current
570X140X3mm
DC6V I 1200mA
Battery Voltage DC3.N I 2200mAh X 6ea
Battery Balance Each Cell Control
Over Charge Protection 4.2V
Discharge Protection 3.0V
Operating Time (per full charge) 7days
Operating Time I One Day 10hrs/1day
LED SPEC LED3528X 108ea
Color Temperature Warm White / Cool White
LGP Size 600X580mm
제품규격
ELECTRONICS LGP SPEC
Product Features SS-SOLAR-LGP
Size 580mm X450 X 10mm
AC Input Voltage AC100V~264V
Frequency Range 43~63Hz
Output Voltage DC12V
Output Current (A) 350 ~ 550mA
Operation Temper -10°C ~ 60°C
LED SPEC LED3528X54ea
Color Temper WW / CW
